TV Mounting Point Lake Forest: Soundbar and Surround Setup in Lake Forest

Where the bar sits

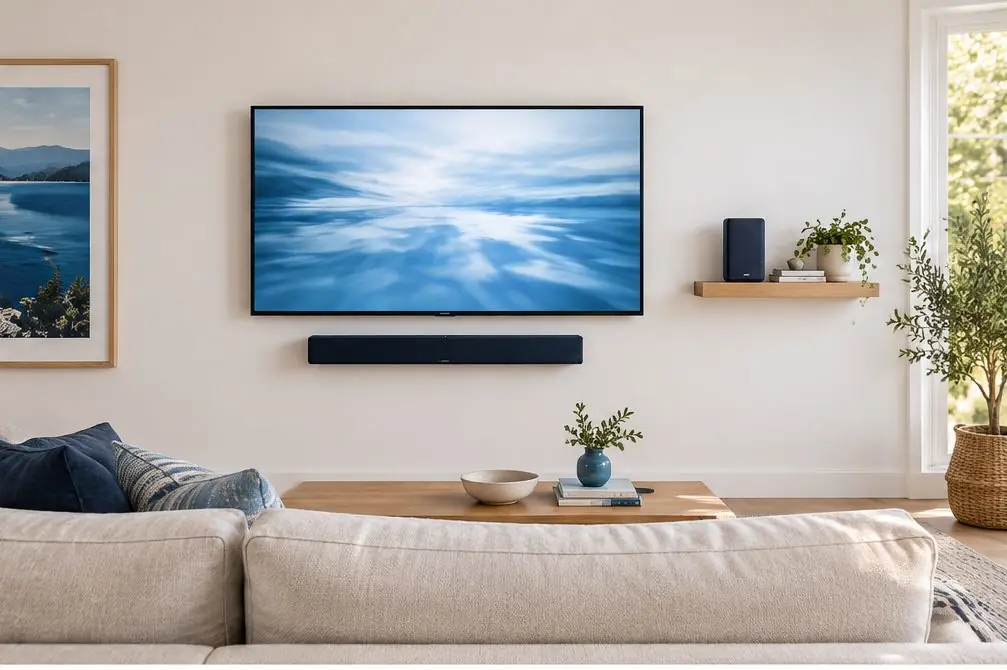

A soundbar is mounted on its own bracket fixed into studs or rated anchors, not hung from the TV mount. It sits a short, even gap below the screen, centered on it, so the bar clears the TV's bottom edge and its tilt.

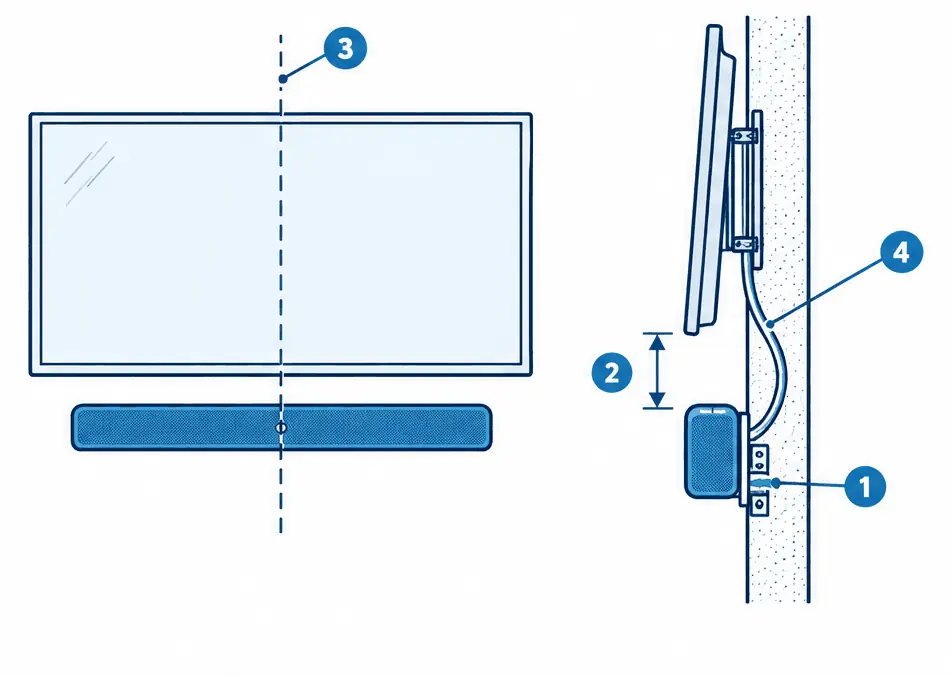

What the numbers show

1. 1Own bracket The bar hangs from its own bracket fixed into studs or rated anchors, not from the TV mount.
2. 2Even gap A steady gap below the screen keeps the bar clear of the TV's bottom edge and its tilt travel.
3. 3Centered on the screen The bar is centered under the screen so sound and picture line up.
4. 4Short cables An HDMI lead and the bar's power run a short distance behind the bar to the TV or a wall plate.

Bar below a tilting TV

A tilting TV swings its bottom edge toward the wall, so the gap to the bar changes with the angle. The installer sets the bar with the TV at its working tilt and leaves a margin so the tilt can still move.

Subwoofers and rear speakers

A subwoofer sits on the floor near the sofa, where power is available. Rear speakers sit on shelves or small stands, and cable runs go along baseboards or in a raceway to the receiver. Wireless rear speakers still need power.

• Subwoofer: floor level, near an outlet.
• Rear speakers: shelves or stands at ear height.
• Cable route: a baseboard raceway rather than a cord across the floor.

Setting the center and the level

A bar that is a quarter inch off level is more noticeable than the TV. The installer centers it on the screen with a laser line and checks it with the bar in place. If the TV is later swapped for another size, the bar''s bracket is re-checked.
